Zero guess work

Leave the structural elements to the professionals.  Put your sweat equity into your home by finishing a pre-built, fully custom, shell.

Time Saving Kits

Fully engineered cold formed steel framing kits give you everything you need to frame out your dream home in no time.

Start Strong - Start Right

Every building is only as strong as its foundation.  Start with a strong foundation that comes with a lifetime guarantee.

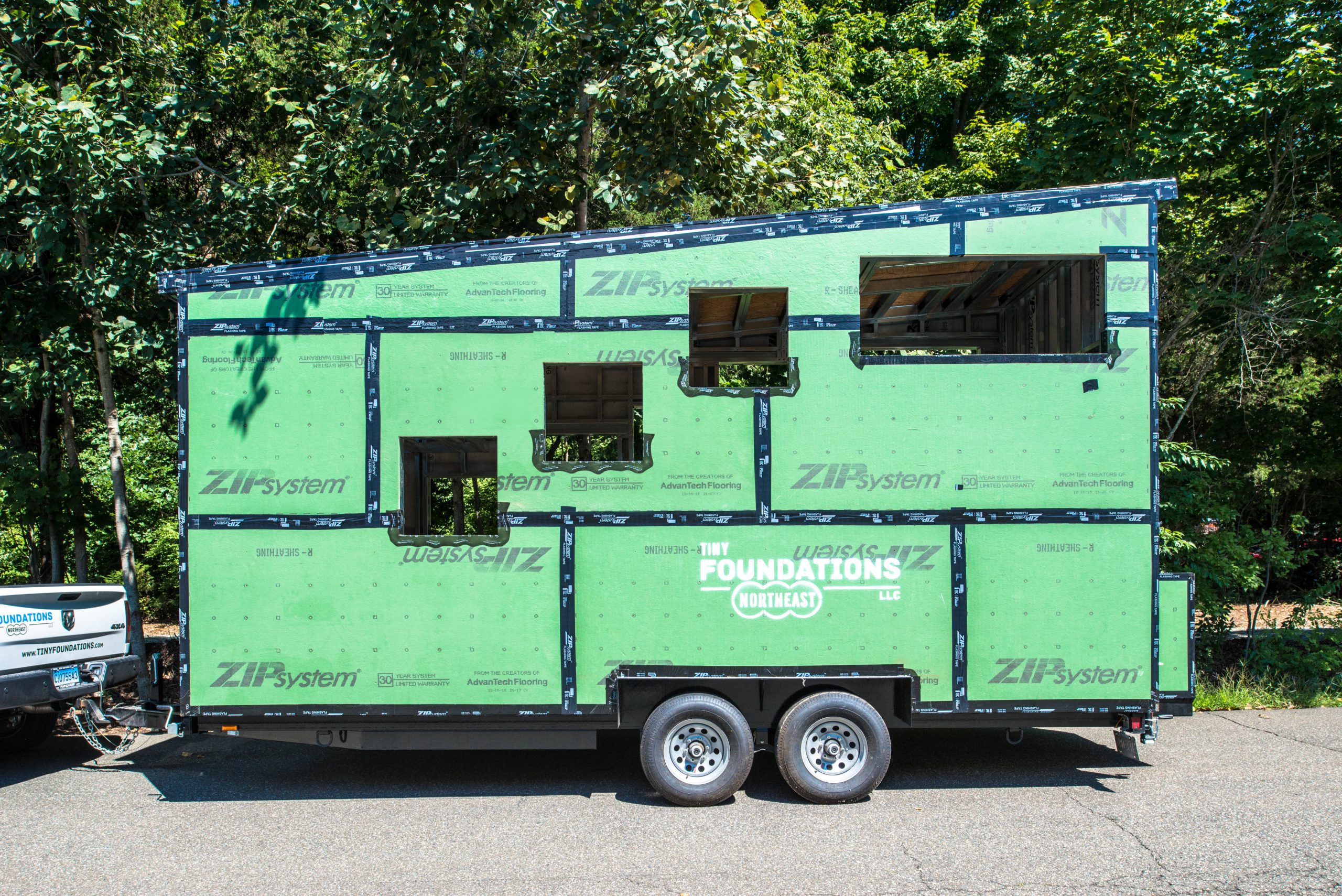

What’s in a shell?

1
2
3
4
5
6
7
8
1

5/8” Zip System roof sheathing

2

20 gauge galvanized steel faming members fully assembled and properly fastened to trailer

3

Zip System flashing tape applied to all seams and ROs

4

7/16” Zip System wall sheathing

5

Window and door openings cut out and properly flashed

6

AdvanTech subfloor installed

7

Closed cell spray foam floor insulation – R29

8

Premium Trailer Made Custom Trailers tiny house foundation

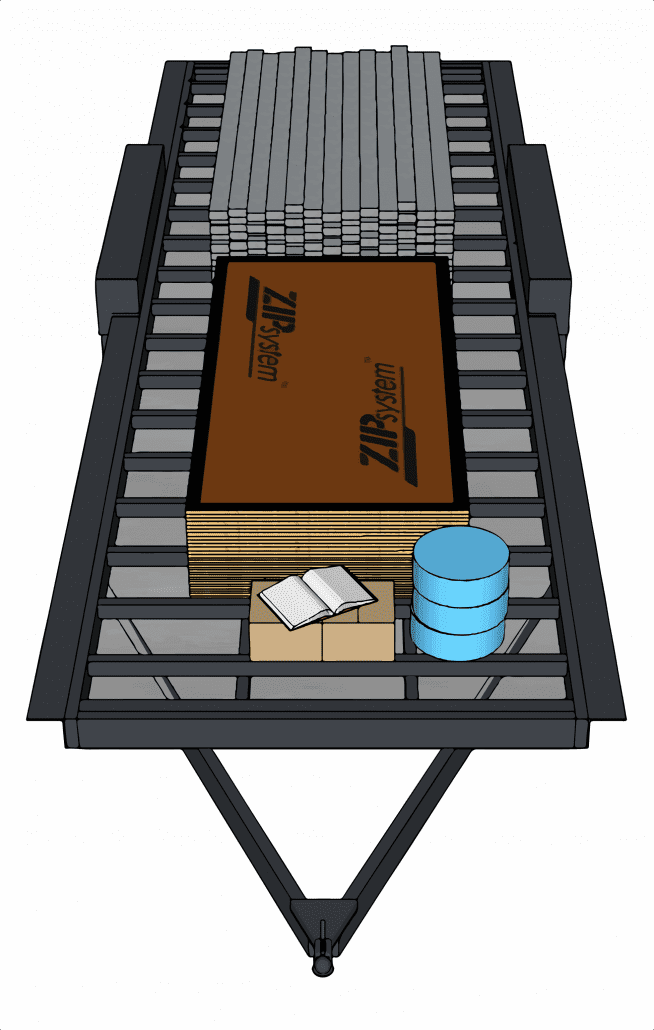

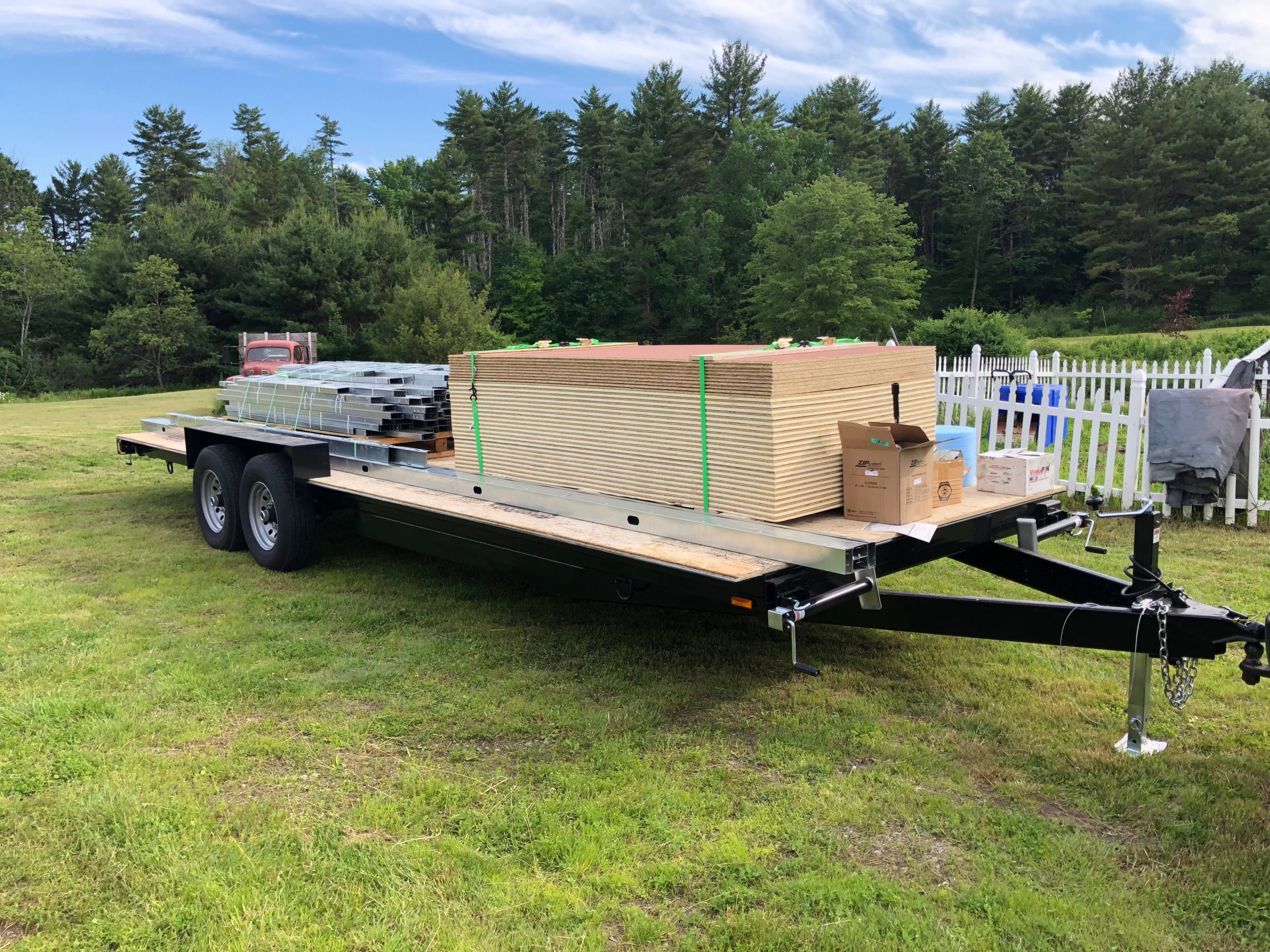

What’s in a kit?

1
2
3
4
5
1

20 gauge galvanized steel framing members, pre-cut, pre-drilled, and labeled for easy assembly. Frame is engineered to your design’s specifications

2

Trailer Made Custom Trailers tiny house foundation trailer featuring:

  • All tube steel construction
  • Cross members spaced 16” o.c.
  • Galvanized steel belly pan
  • Leveling jacks on all 4 corners
  • Fully sealed wiring harness
  • Electric brakes on every wheel
  • All LED lights
  • Exclusive Lifetime Guarantee
3

Complete hardware kit including:

  • Assembly screws and bolts
  • HTT4 tension ties (hold downs)
  • Drill and driver bits
  • Threadlocker
  • Sill seal and spray adhesive
  • Subfloor fastener pack
4

Complete assembly instructions and corresponding drawings

5

Potential upgrades include:

  • Closed cell spray foam floor insulation
  • AdvanTech subfloor installation
  • Zip System sheathing package

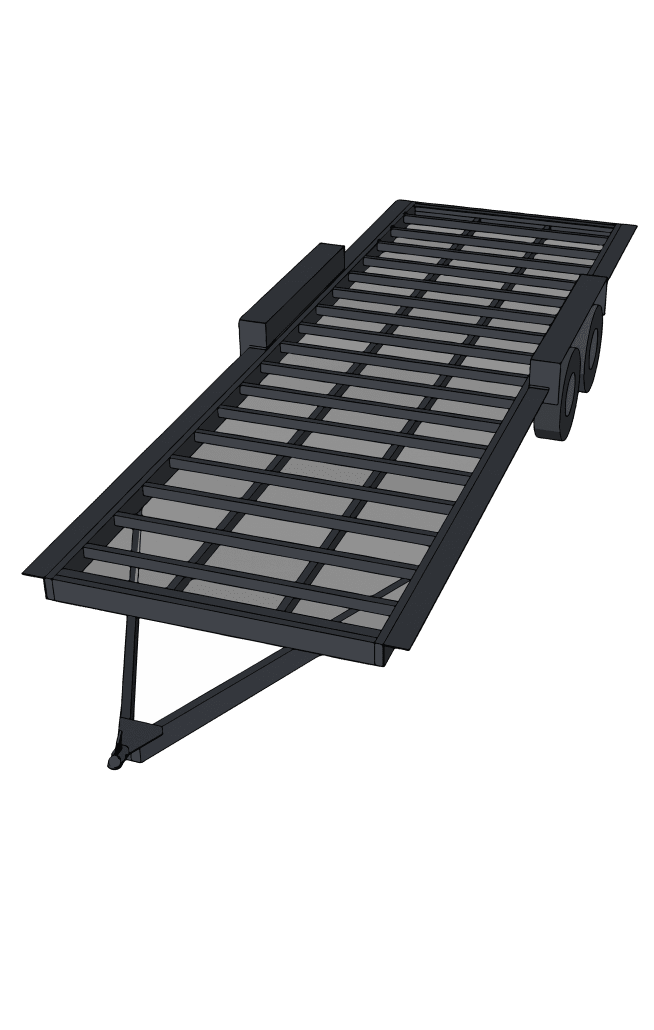

What’s in a foundation?

1
2
3
4
5
6
7
1

All tube steel construction provides increased strength and torsion resistance

2

Structural fenders, providing sufficient support to place a door over the wheels, adding floor plan flexibility

3

Electric brakes on every wheel and 10-ply radial trailer tires properly rated for the load of your home

4

Structural angle sill plate properly supports the entire bottom plate and provides an incredibly easy method for proper framing attachment

5

Galvanized steel belly pan provides protection from road debris while in transit and a substrate to support subfloor insulation – enough room for up to R35

6

Loading jacks on all four corners designed to LIFT and HOLD the weight of your home – allowing you to level and support your house when parked

7

Fully sealed wiring harness with standard 7-pin trailer harness connector, all LED lights, breakaway safety braking system
